Grader Balde 14 feet or 12feet Changlin PY220H 220Hp hydraulic brake system with Komatsu technical better than XCMG

Rated power KW: 162
Total weight kg: 15500
Machine length mm: 8990
Machine width mm: 2600
Machine height mm: 3370
Blade length mm: 4320
Maximum travel speed: 47
Minimum turning radius mm: 7400
The engine adopts Shangchai SC11CB220G2B1, and uses Warner Shenglong to increase the fan, which has strong heat dissipation capability and is suitable for working under high temperature environment;
Supporting air pre-filter to enhance the engine air intake purification function and adapt to the harsh environment of wind and sand;

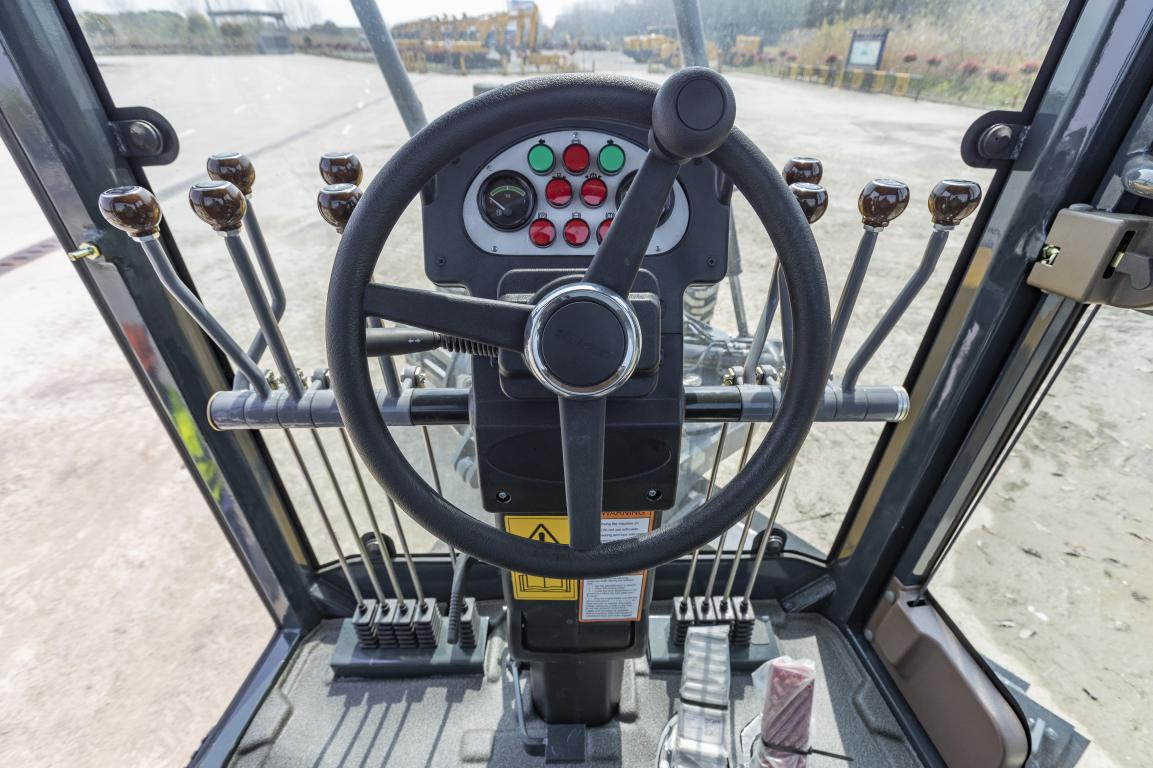

New cab: The bottom of the joystick is sealed with rubber parts, the overall rigidity is strong, and the cab sealing effect is good;
The new adjustable console is used, and the injection molded parts are outsourced, novel and reliable;
Adopt electronic monitoring system, three-level alarm;
Transmission system: double-variable adopts Hanging tooth 6WG180, rear axle with NO-SPIN imported differential;

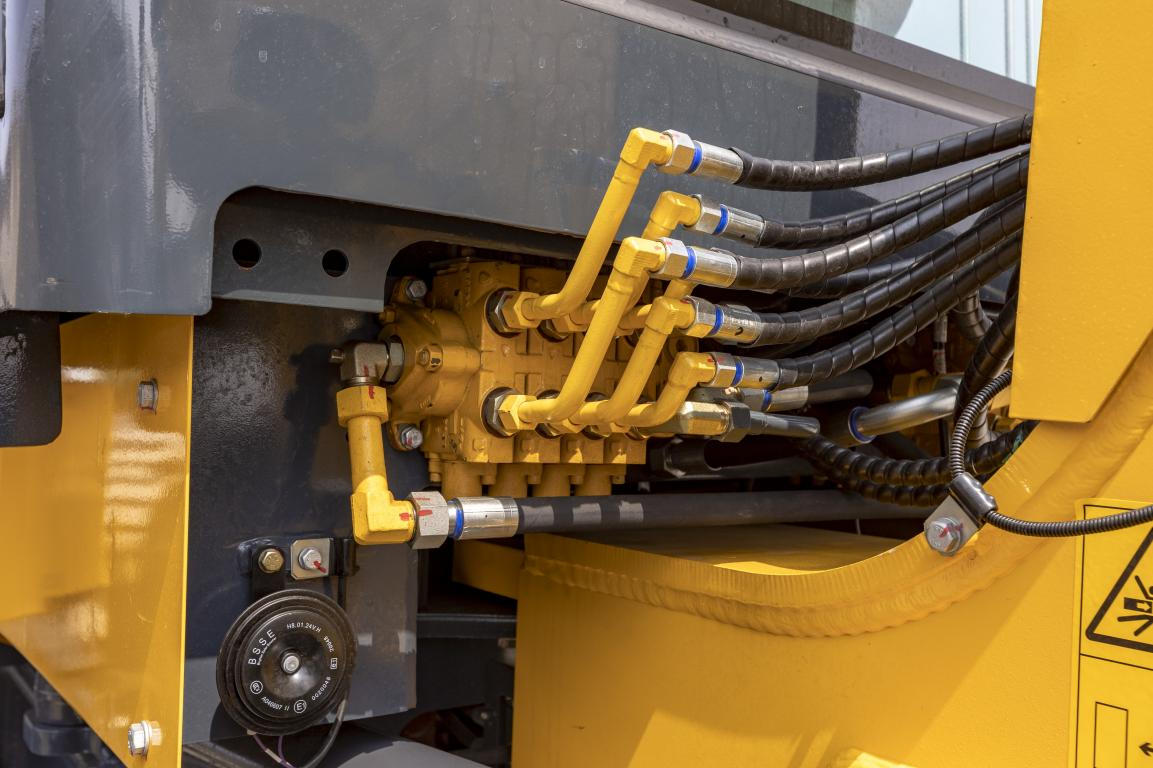

The hydraulic system adopts single pump split, supporting HUSCO multi-way valve, imported hydraulic balance valve, hydraulic lock in multiple places, stable and reliable system performance, energy saving and emission reduction;
The brake system uses Mico dual-fluid brake booster for comfortable operation, safety and reliability;
Using maintenance-free battery, electromagnetic iron switch, high-decibel speaker, electrical system performance is stable;
Electrical control components are centrally arranged for easy maintenance

CHANGLN PY220H

一,HIGH PERFORMANCE AND LOW EMISSION ENGINE

Cummins turbocharged engine, realizes high productivity and low fuel consumption. Durable mechanical

inline fuel injection system provides precise throttle control and thus it delivers higher work speeds with high horsepower.

二,RELIABLE AND PROVEN TRANSMISSION

Sing-handle electro-hydraulic controlled power-shift T/M, 6forward & 3reverse shifts makes operation easy and convenient

ZF-technology powershift transmission is best matched with Cummins engine and is reliable and easy to operate, suited for all types of working conditions.

三,Box-type d frame and advanced T/M enable it to complete heavy-duty work

四,Hydraulic lock, auto lock/unlock NO-SPIN differential ensures stability and powerful traction

五,A wide working range is accomplished through flexible blade suspension system and articulated frame

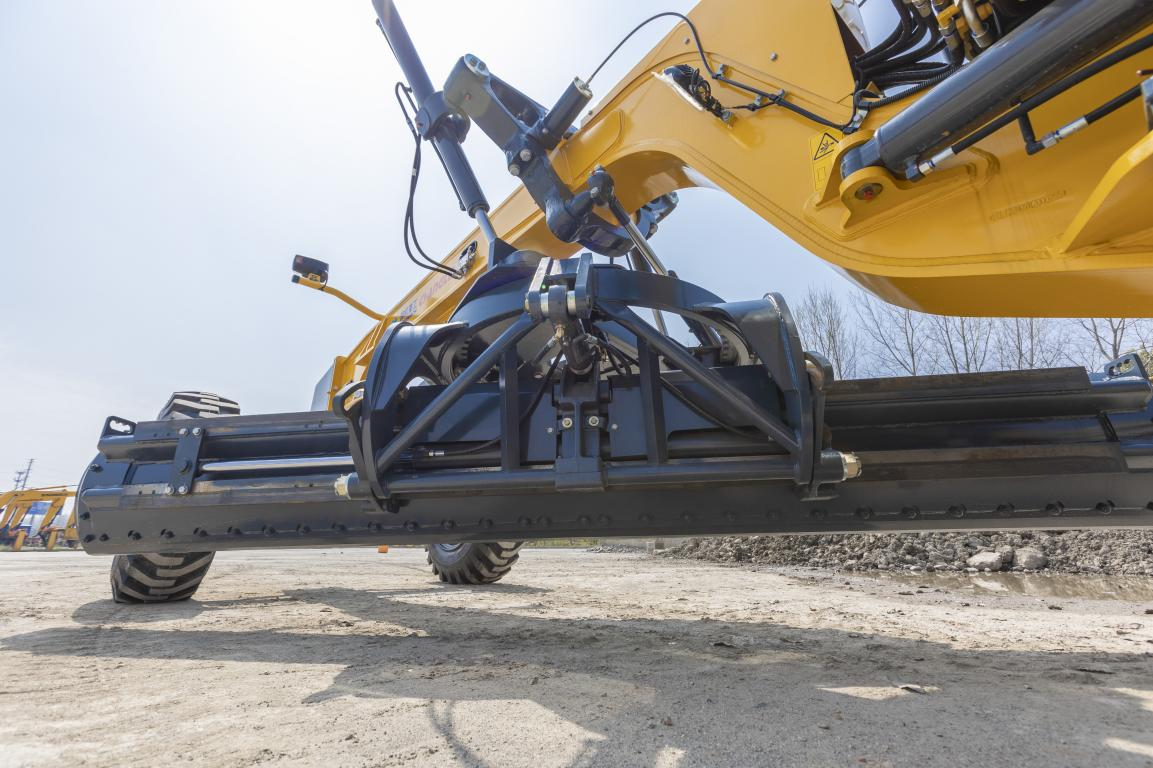

The drawbar is composed of strong A & U-shaped frame for strength durability, and precise blading control.

The heat-treated rotating ring structure is equipped with four turntable of inner gear guide type, can obtain

360° smooth rotation. The moldboard provides optimal curvature that helps move all soil types quickly and efficiently

六,Ideal axle load allocation provides excellent stability while cutting hard surface

七,Serviceable, efficient hydraulic system enables every part to be fully used

Reliable full hydraulic brake system ensures safety

八,EXCELLENT VISIBILITY

Excellent visibility and layout side pillar boosts operator’s confidence and productivity in all grader applications.

Well-positioned blade linkage provides an unobstructed view of the moldboard and front tires.

九,WORK TOOL AND ATTACHMENTS

Front Dozer Option

The front Dozer is a front mounted equipment used for spreading materials such as gravel piles or blading

at the front of the machine where is difficult to access with the moldboard.

Ripper(Rear) and Scarifier(Mid-mount) Option

Digs up hard material cannot be removed by the moldboard. The V-type scarifier can accommodate up to

11 teeth, the ripper also accommodate 3 -9 shanks.

十,Automatic Leveling Device Option

As a 2D control system, Automatic Leveling Device offers precise and reliable height and slope control and

a high level of flexibility in the choice of sensors and fields of application.

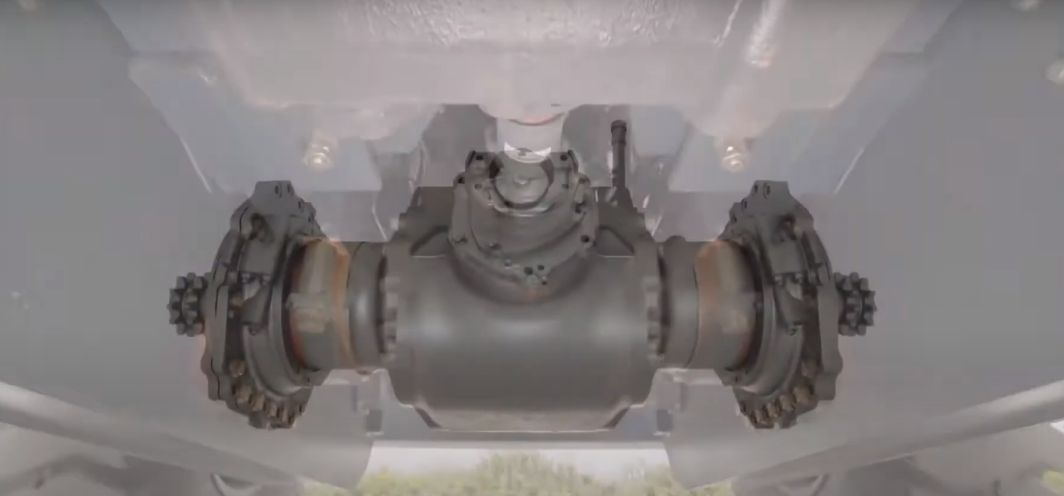

十一,Adopt large size rear drive axle. With the same specification as 170H grader, the transmission reliability is stronger.

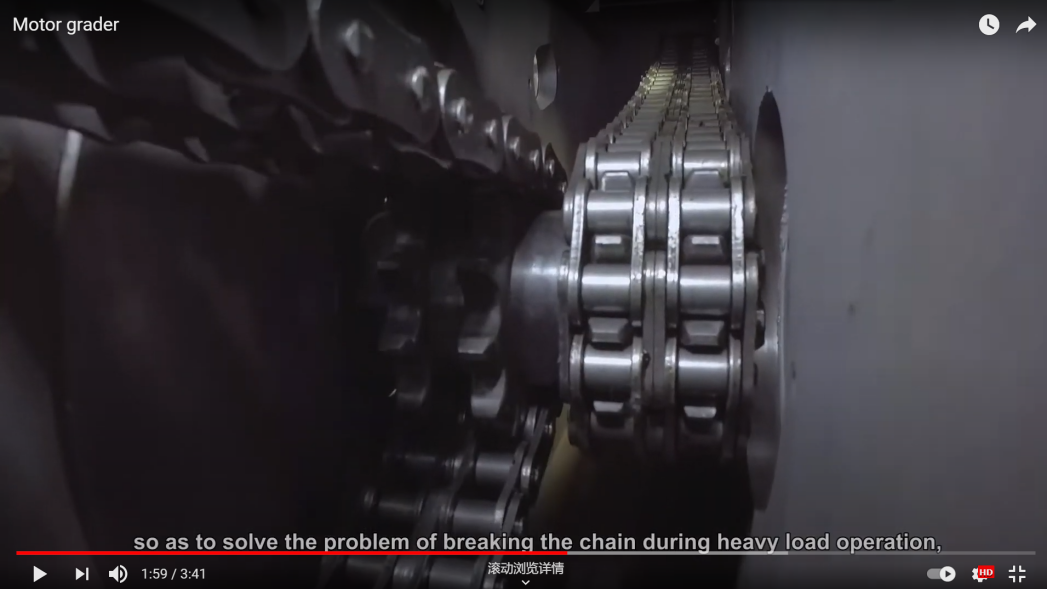

十二,Double row roller chain,Fully guaranteed strength (tensile strength of 26 tons, far higher than the

peer and national standards).
